Specifications:

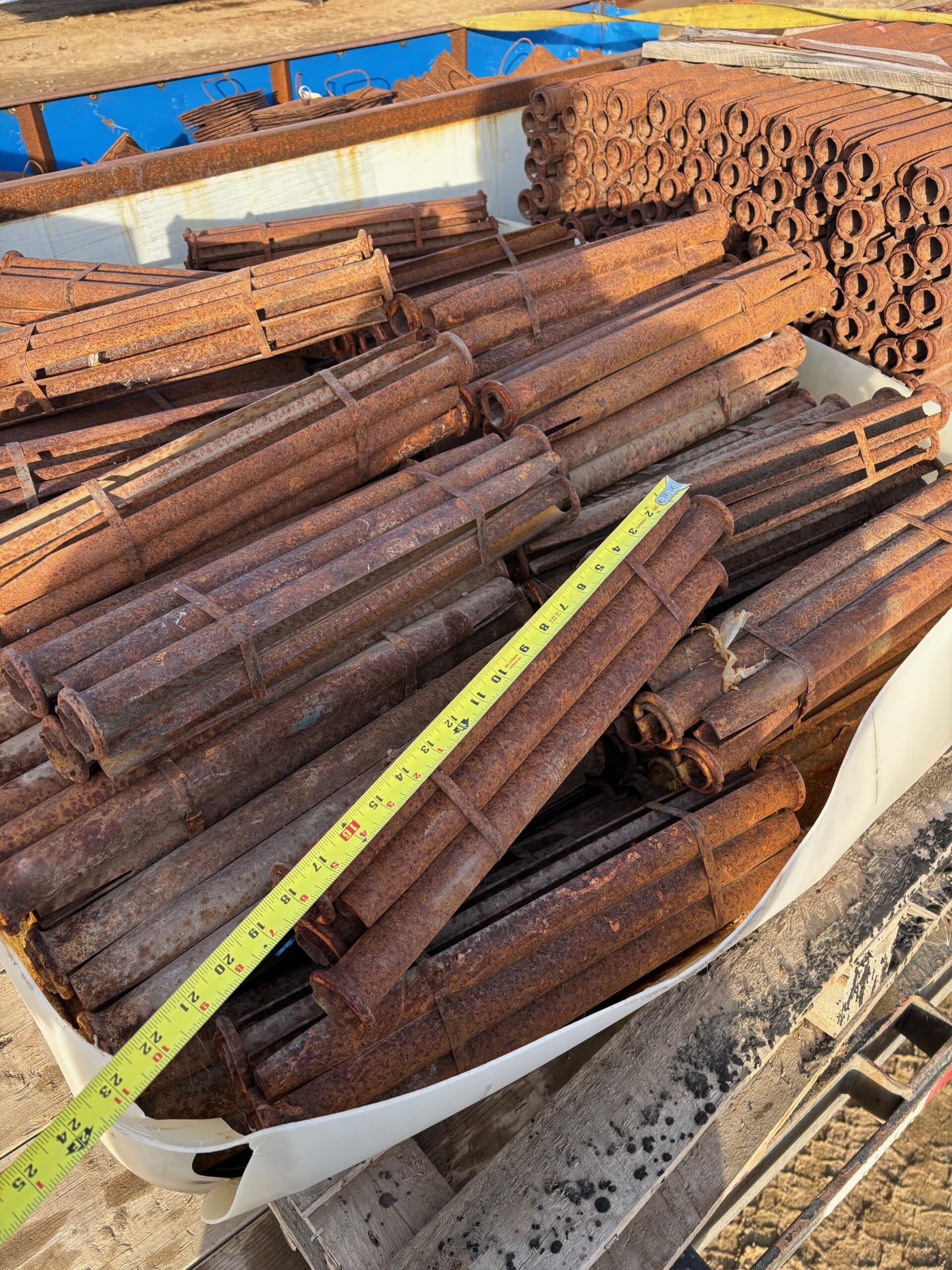

• 18″ long

Primary Uses:

• Ground Control
  • Commonly known as “friction bolts”, split sets can be pushed into a bored hole and use as ground control in fractured rock without the need for rock lock resin.
• Utility Hangers
  • Keep air hoses, water hoses and electrical cords off of the ground and out of the roadway by hanging on side wall off a series of split set.
• Split Set Stabilizer
  • Utility hangers can be driven inside installed Split Set stabilizers, by aligning the hanger slot with that of the stabilizer. This permits easier installation of mesh, after the ground is secured by the stabilizers.

Description:

Split Sets are rock bolts with only 2 parts, a tube and matching domed bearing plate. The high strength steel tube is slotted along its length. One end is tapered for easy insertion into a drill hole and the other has a welded ring flange to hold the bearing plate. With the bearing plate in place, the tube is driven into a slightly smaller hole, using the same standard percussion drill that made the hole. As the tube of the rock bolt slides into place, the full length of the slot narrows, causing radial pressure to be exerted against the rock over its full contact length.

Split Set utility hangers can make screen and mesh installation much easier, faster, and safer. After your opening is secured with Split Set stabilizers, install the mesh all at once by driving Split Set utility hangers inside the stabilizer tubes.
