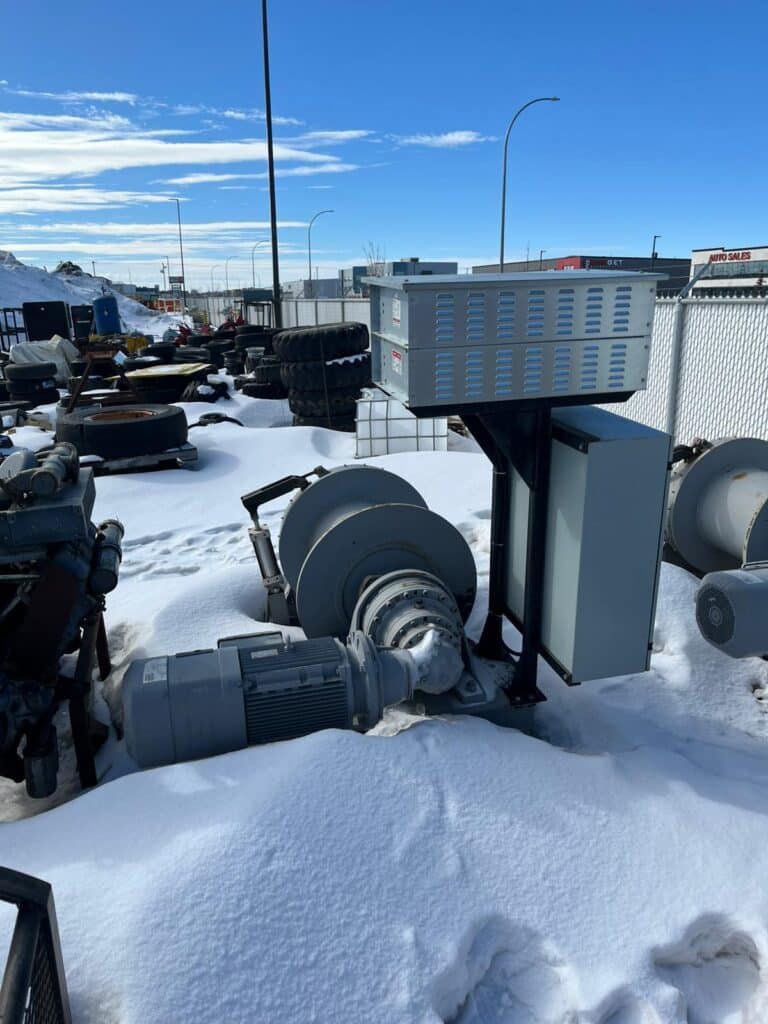

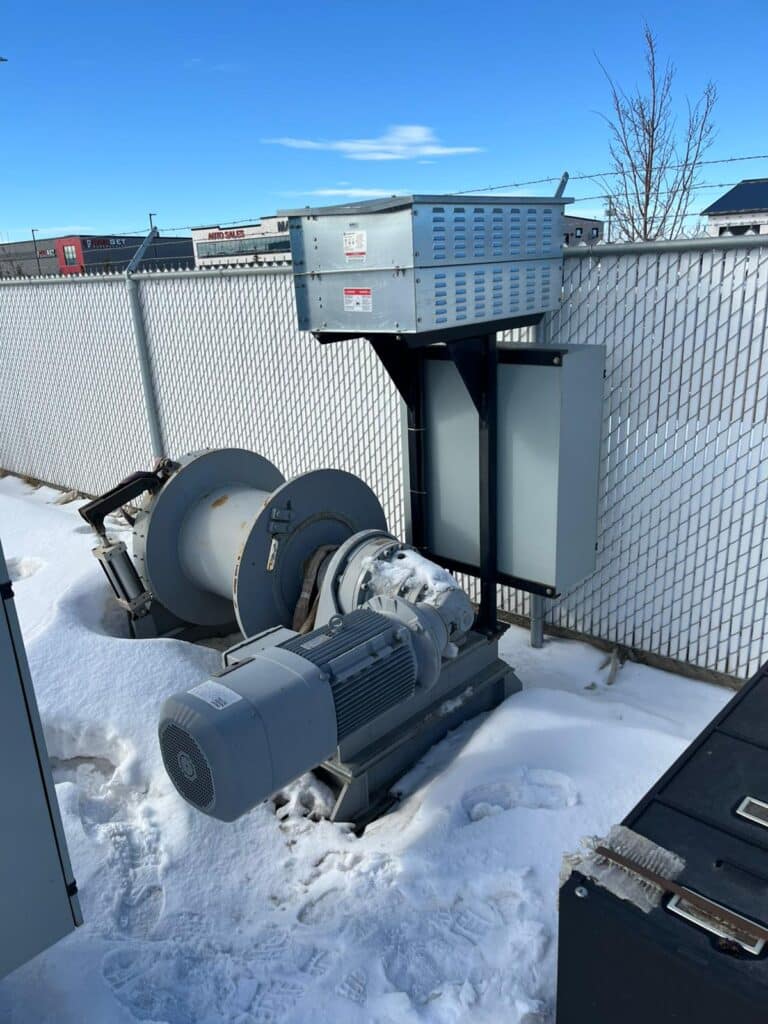

The 4HPF Series of power winches are designed for applications requiring long travel distances and fast line speeds. The heat-treated, helical/parallel gear set provides durability and high efficiency—up to 94 percent. A modular design allows configuration to a variety of customer specifications. These winches are ideal for harsh and hazardous environments, including hard-to-reach locations. Typical applications include ship winches, mining, construction, and rail yards.

• Manufacturer: Thern
• Model: 4HPF2M
• Capacity (1st/mid/full): 2,100lbs /1,300lbs /900lbs
• Electrical Req. : 575/3/60
• Wire rope size: 5/16″
• Drum Storage: 560 ft
• Line Speed (mid) : 55 fpm
• Gross weight (less rope): 200lbs
• Features:
  • Pendant Controls
  • Automatic Brake
  • Machine Cut Gears
  • Sealed, cast-iron gearbox with integral oil bath for rotating gears dissipates heat and provides continuous lubrication for enhanced service life
  • A totally enclosed, fan-cooled (TEFC) design, featuring IP66 and F-class insulation, resists debris and contamination for long service life
  • Large-capacity bearings enhance smooth operation and durability
  • Supplied with wire rope as needed

All of our Winches come with a fresh service and pull testing certificates showing a proof load of 125% of rated load has been applied and held by the brake.
