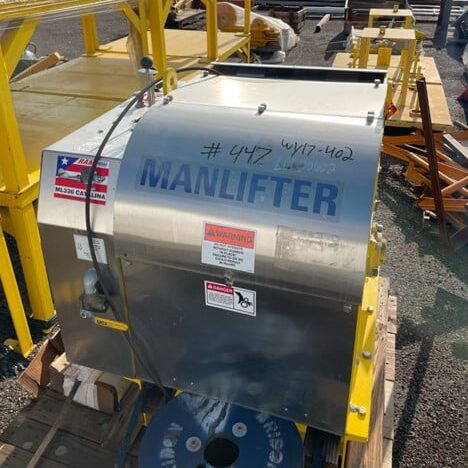

This RAM Catalina winch is an air, planetary driven cable-handling unit, with an automatic band brake and a manual caliper disc brake designed for use in the marine or industrial environment. It is designed for handling personnel only. The winch is to handle one (1) person only. The winch has a limited pull capacity as required by DNV, NPD and NORSOK.

Specifications:

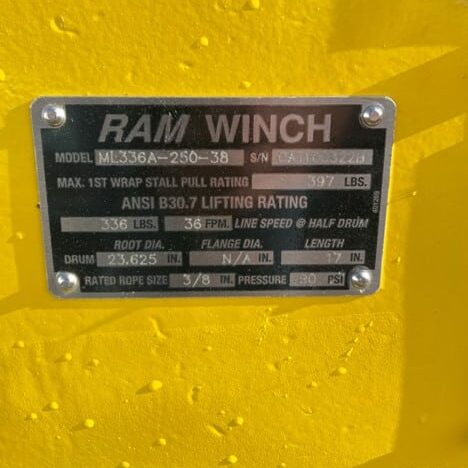

• Manufacturer: RAM Winch
• Model: Catalina ML336A-250-38
• Serial #: CA1100322B
• Max Lifting Capacity: 397 lbs
• Lifting Rate: 336 lbs @ 36 Feet/minute
• Rated Rope Size: 3/8″ (10 mm)
• Rope Capacity: 250′ of 3/8″ rope
• Rated Operating Pressure: 80 PSI
• Max Line Speed: 90 Feet/ minute

Features:

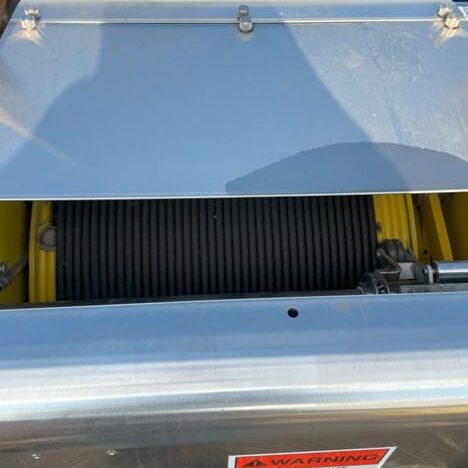

• Construction: All steel with stainless steel drum cover and stainless steel hardware.
• Bearings: Roller type, flange mounted.
• Drive System: A vane type air motor, coupled to a planetary gear reducer.
• Controls: Manual 4way, 3 position air control valve (spool type).
• Braking System: Automatic brake (spring applied, pressure release brake band type). Manual brake is a caliper disc brake.
