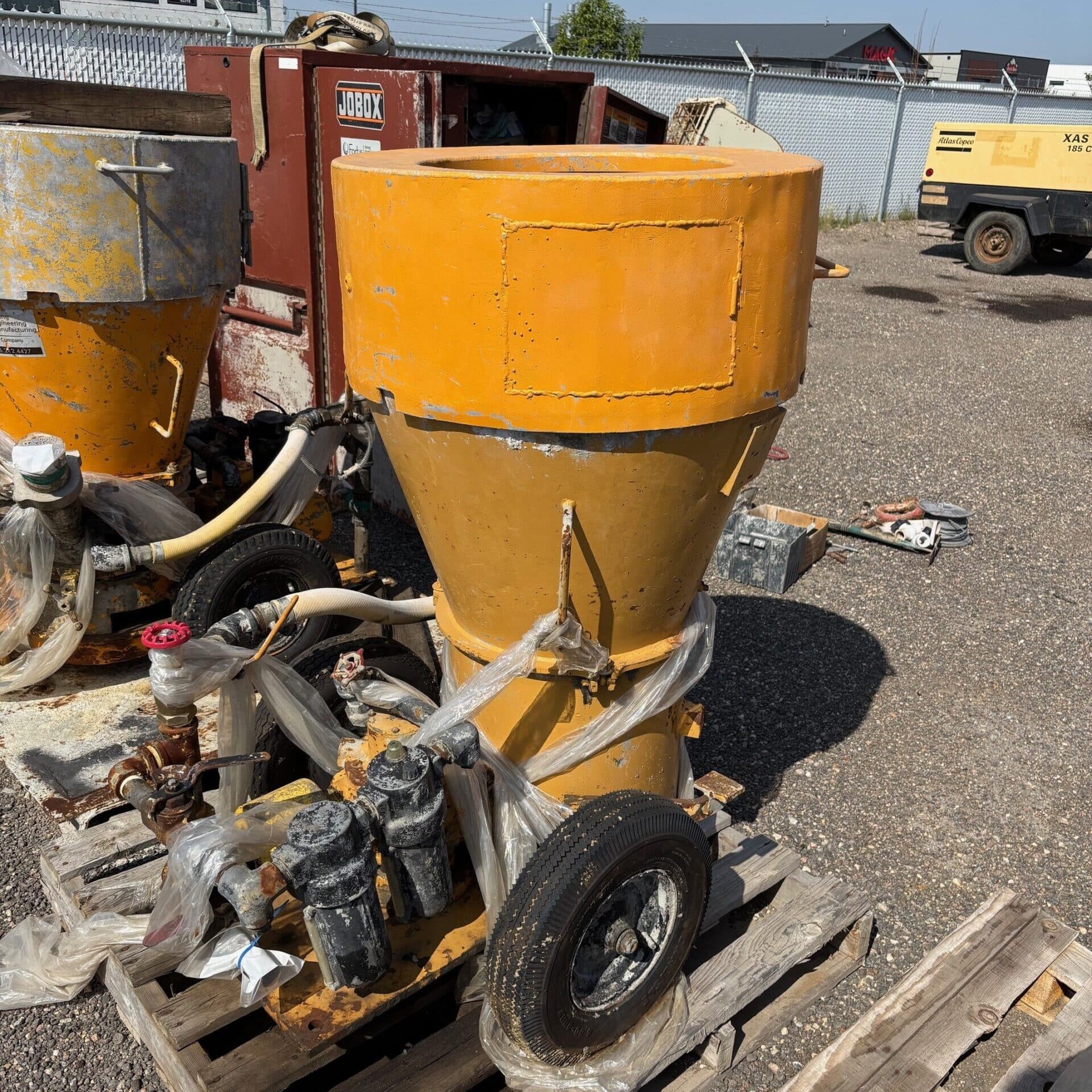

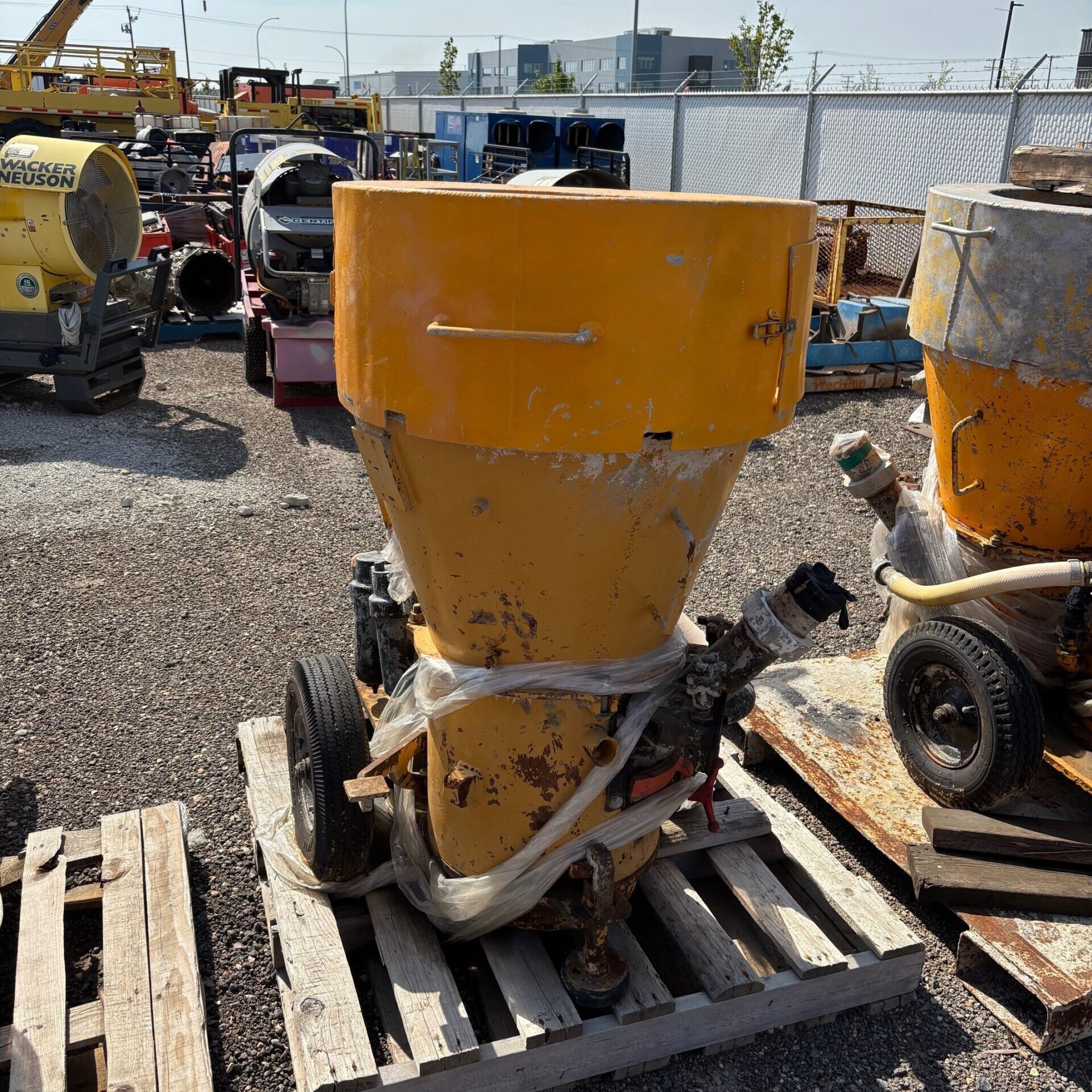

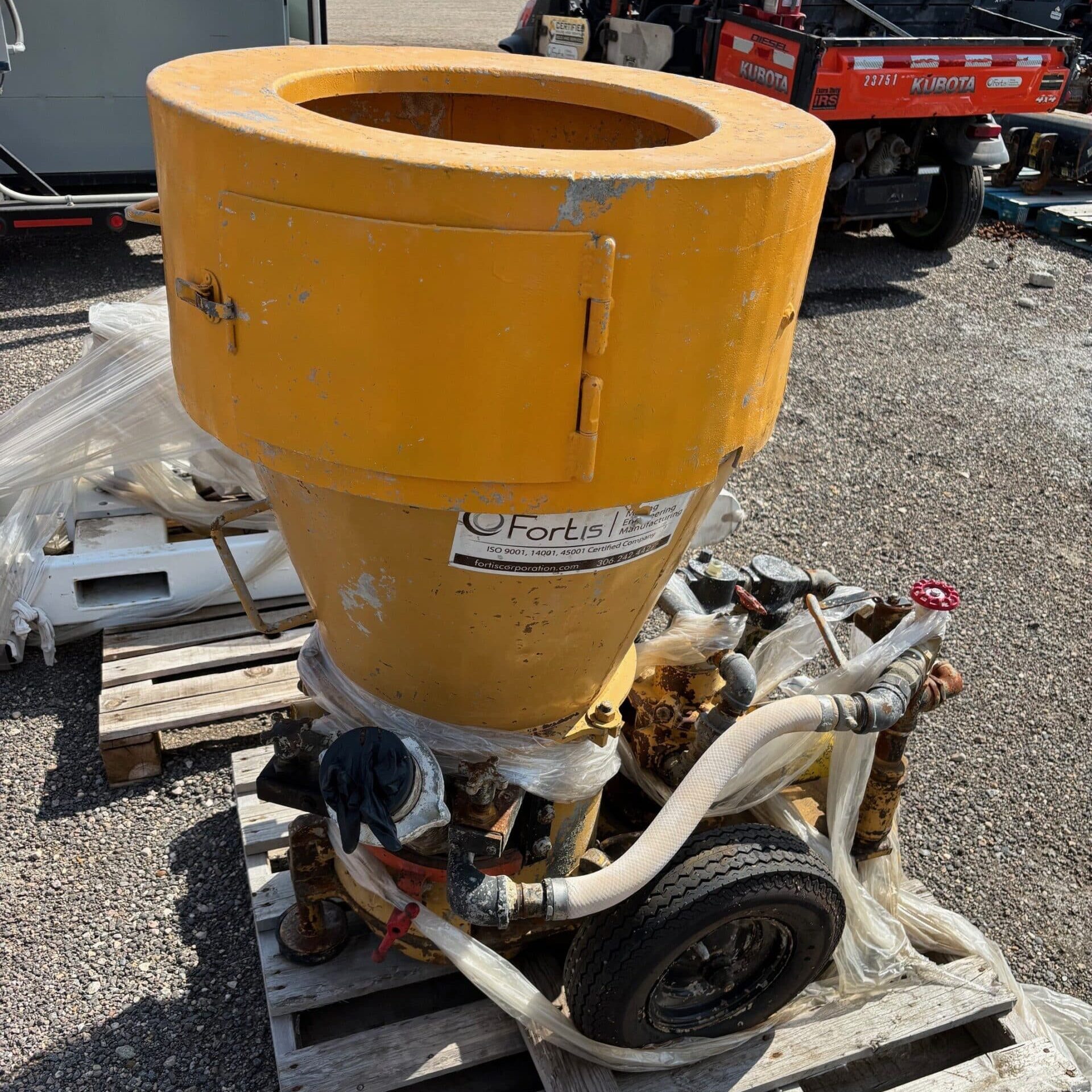

Reed SOVA Shotcrete Machine

Specifications:

Maximum Horizontal Conveying Distance: 1000′ (305m)
Maximum Vertical Conveying Distance: 300′ (91m)
Machine Weight: 455lbs (206kg)

Feed Bowl # Pockets	Hose Size (I.D)	Maximum Aggregate Size	Air Compressor (Recommended size at 100 PSI)	Maximum Output	Common Applications
18	1″ (2.5cm)	1/4″ (7mm)	210 cfm (6.0m3/min)	2yd3/hr (1.5m3/hr)	Fine, detailed artistic-type work, rockscaping, patch repair
18	1-1/4″ (3.2cm)	1/4″ (7mm)	315-375 cfm (9-11m3/min)	4yd3/hr (3m3/hr)	Refractory spraying, repair work, smooth finish
16	1-1/4″ (3.2cm)	1/4″ (7mm)	315-375 cfm (9-11m3/min)	6yd3/hr (4.6m3/hr)	Refractory spraying, repair work, smooth finish
16	1-1/2″ (3.8cm)	3/8″ (10mm)	315-375 cfm (9-11m3/min)	9yd3/hr (6.9m3/hr)	Refractory spraying, repair work, smooth finish

Feautres:

Direct Drive 5HP Air Motor
Continuous Feed Hopper
2 Blade Material Agitator

The SOVA Gunite Machine provides a steady flow of material which allows uniform hydration and very smooth placement. The adjustable output of material may be increased without sacrificing the quality of the application. The compact SOVA is capable of spraying through hoses from 1” to 1 1/2” (25 to 38mm) inside diameter. SOVE (Electric Version) uses an electric motor to rotate the machine’s feed bowl. (Air required to convey material) Made in the U.S.A. with the highest quality components and craftsmanship, REED has offered the most rugged and reliable Gunite Machines on the market for nearly 60 years.

For detailed information about this specific product, click here to read the spec sheet.
