Specifications:

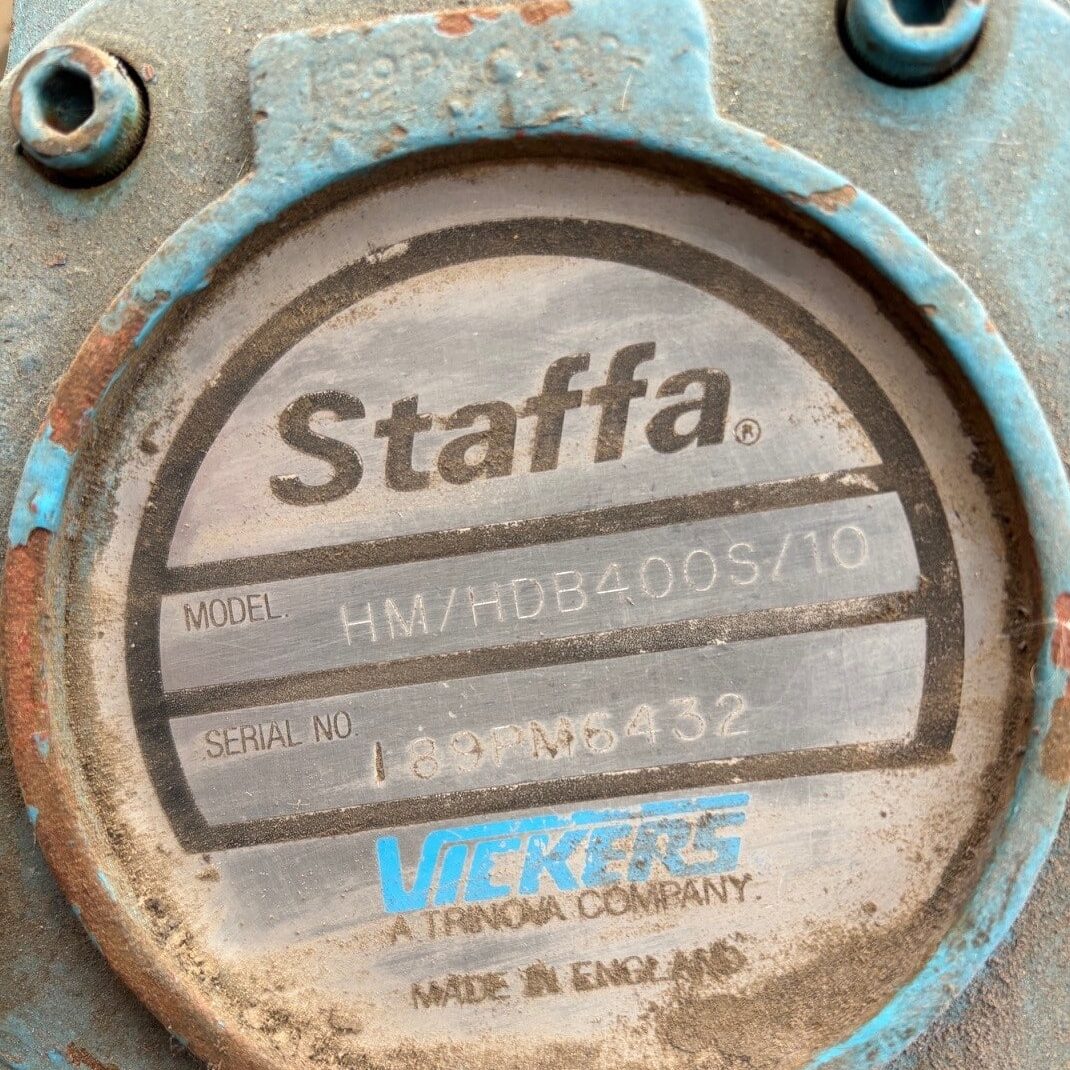

• Manufacturer: Staffa
• Model: HMHDB400S
• Geometric Displacement: 6,800 cc/rev
• Running Torque: 19,000 lb/ft
• Max Speed: 120 RPM
• Max Power Output: 190 kW (256 HP)
• Max Continuous Running Pressure: 3,626 PSI
• Max Intermittent Pressure: 4,250 PSI
• Weight: 1,020 lbs

Features:

• Rugged, reliable, proven design
• Unique hydrostatic balancing provides minimum wear and extended life
• High volumetric and mechanical efficiency
• Capacities range from 50 to 8,000 cc/rev
• Large variety of shaft and porting options
• Output torque up to 25,250 Nm
• Wide range of mounting interfaces available
• Alternative displacements also available

General Descriptions:

The Kawasaki “Staffa” range of high torque low speed fixed displacement radial piston hydraulic motors consists of 13 frame sizes ranging from the HMB010 to HMB500. Capacity ranges from 188 to 8,000 cc/rev. The rugged, well proven design incorporates high efficiency, combined with good breakout torque and smooth running capability. Various features and options are available including, on request, mountings to match competitors’ interfaces. The Kawasaki “Staffa” range also includes dual and triple displacement motors.
