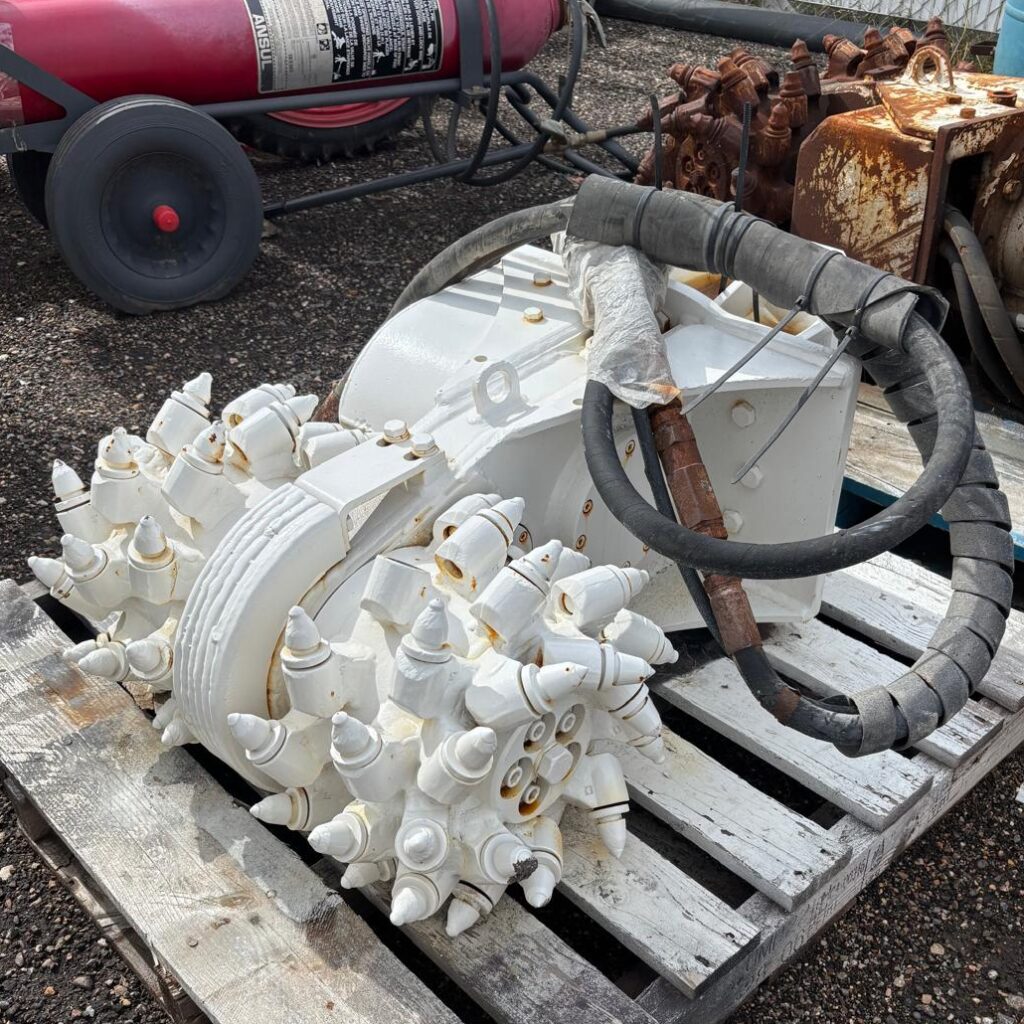

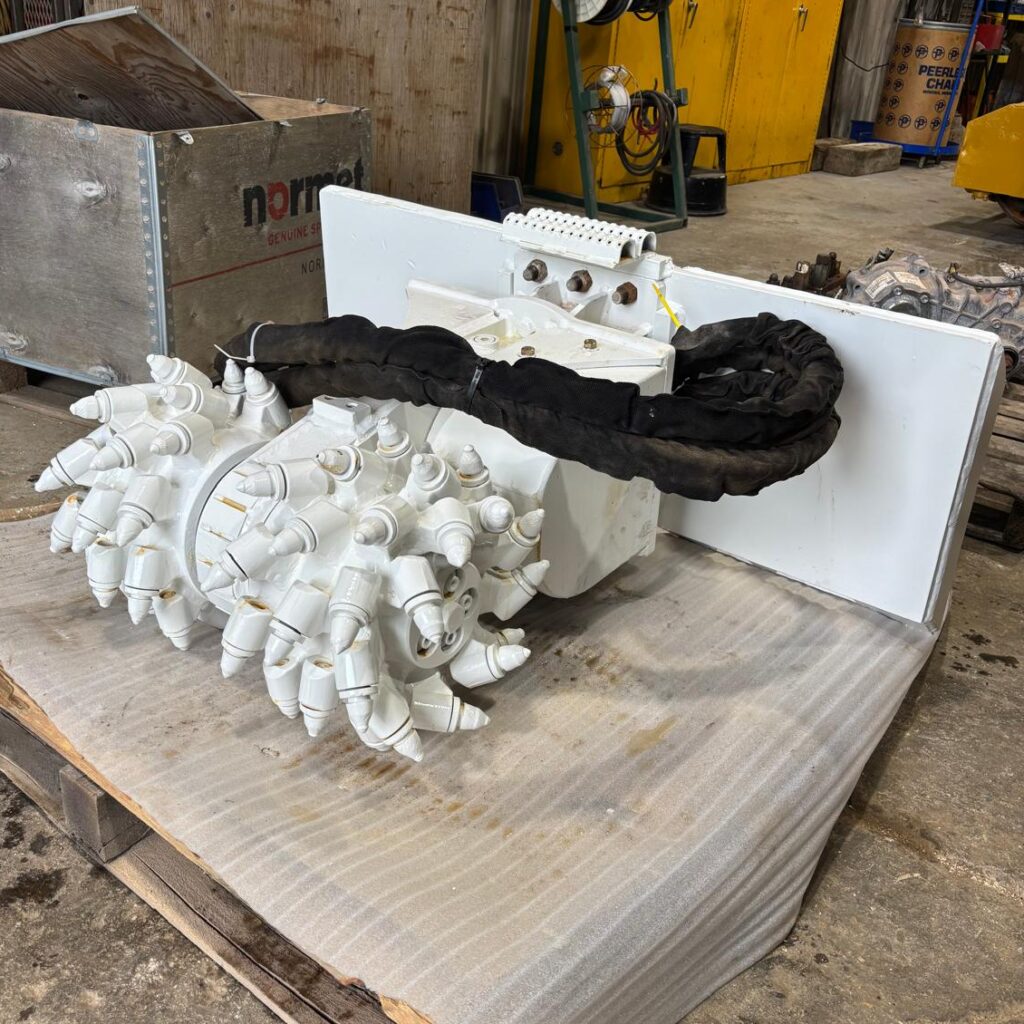

Erkat ER100 Transverse Cutting Head

Erkat Transverse Drum Cutters are an excellent choice for rock or concrete wall and surface profiling, trenching, soft rock and frozen soil excavation and demolition. This Erkat ER100 Drum Cutter can be mounted on our Brokk 160/170 Remote operated demolition robots and is also suitable for mounting on any excavator or skid steer with the required weight capacity and hydraulic flow (quick attach plate suited for your machine will be required).

  • Manufacturer: Erkat
  • Model: ER100
  • Year: 2014
  • S/N: 9133SS
  • Rec. Machine Weight Class: 3-7 ton
  • Cutting Width: 24″
  • Rotation Speed: 115rpm
  • Optimal Oil Flow:
    • 10.8 GPM – 16.38 GPM
  • Max Hyd. Pressure: 4500psi
  • Torque Rating: 2214 Ft/lbs
  • Max Material Hardness: 30 MPa
  • Operating Weight: 770lbs (350kg)
  • Features:
    • With the appropriate mounting bracket this unit can be fitted to an excavator, backhoe loader or skid-steer
    • Extremely robust spur gears for optimum energy transmission and maximum reliability
    • Robust housing design with HARDOX wear protection for higher uptime
    • High load resistant output shaft bearing system with lubrication-free slide ring seal system
    • Adaptable high torque radial piston motor for higher productivity and motor lifetime
    • Can be used up to 30 meters underwater with-out additional modification

Contact us today for more details!

For detailed information about this specific product, click here to read the spec sheet.
