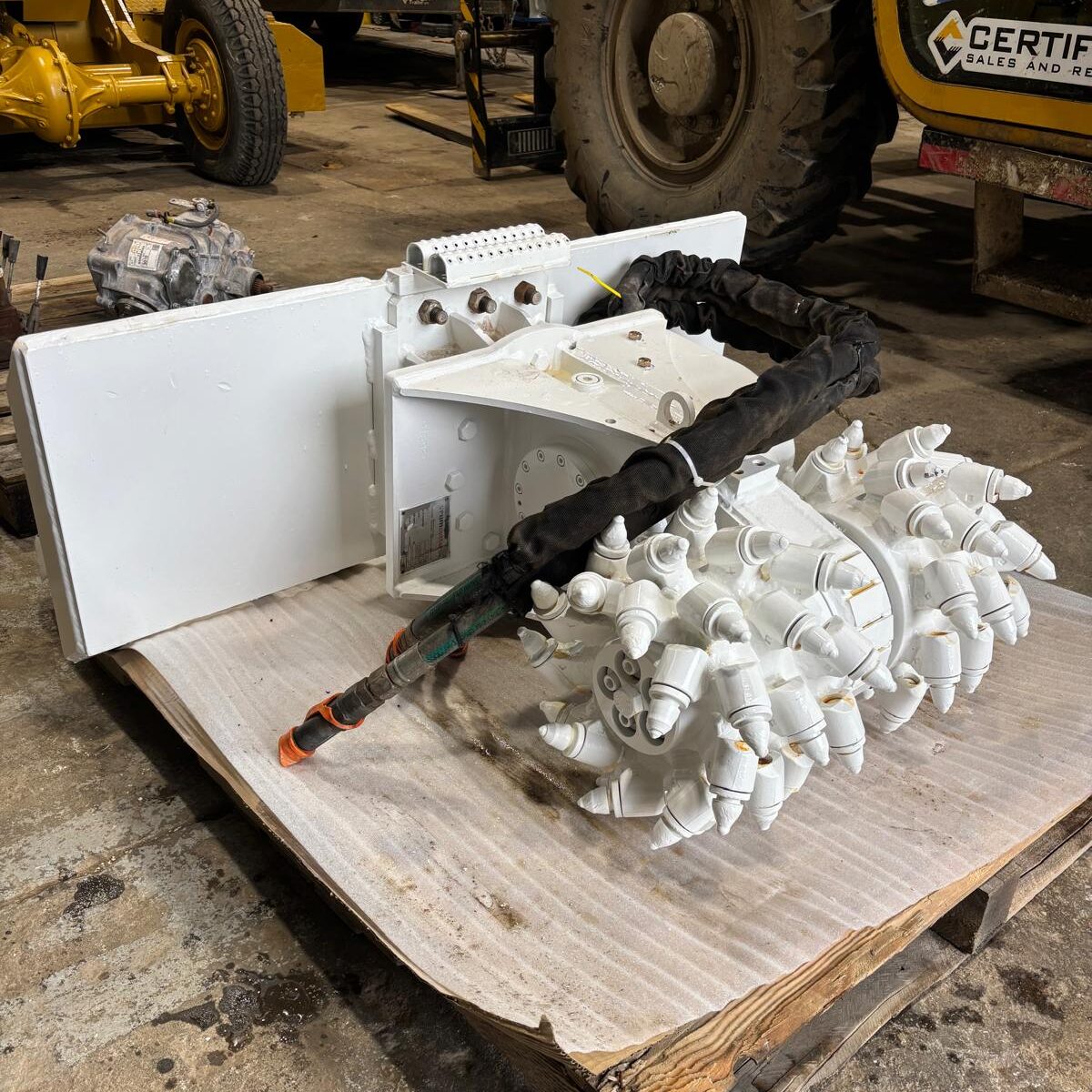

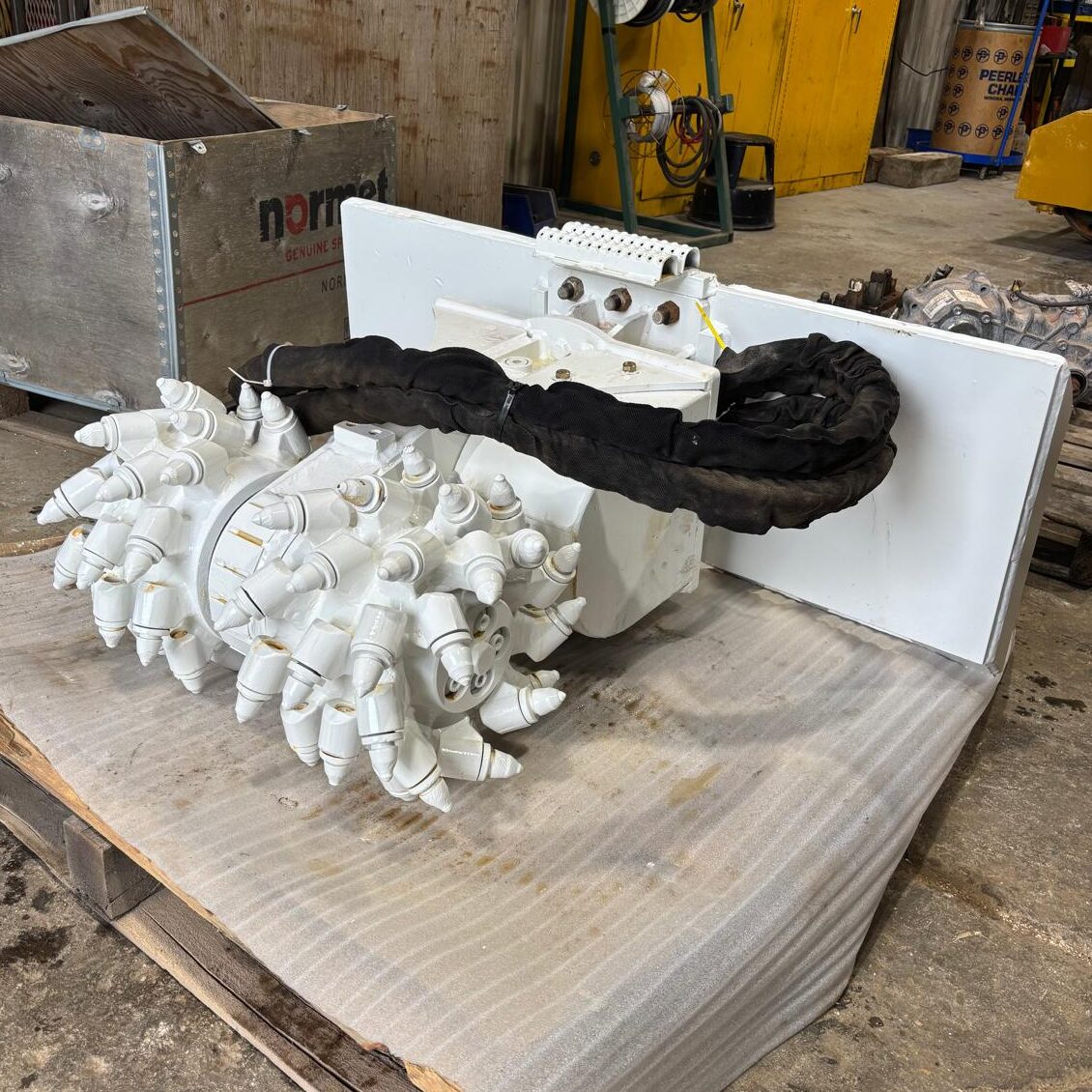

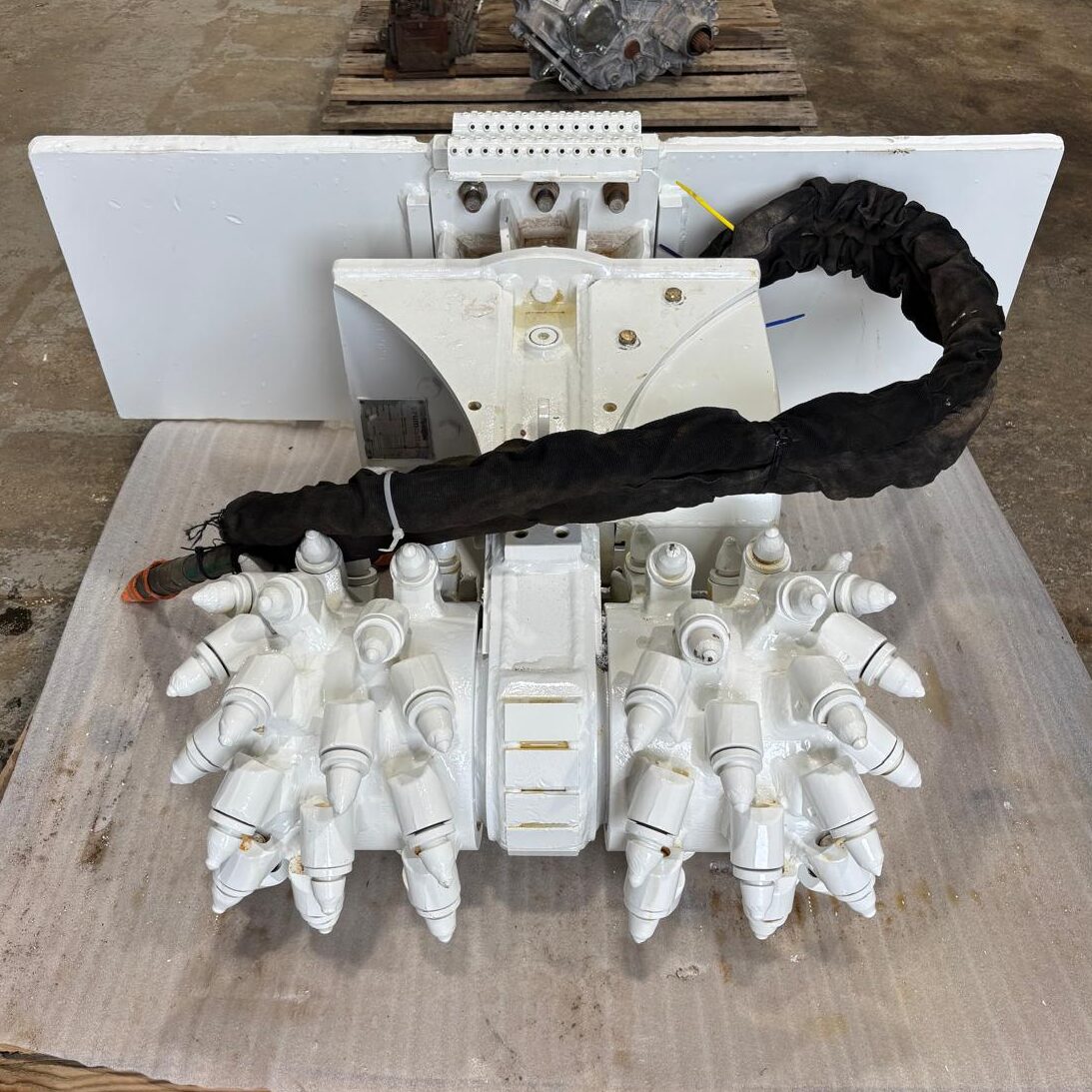

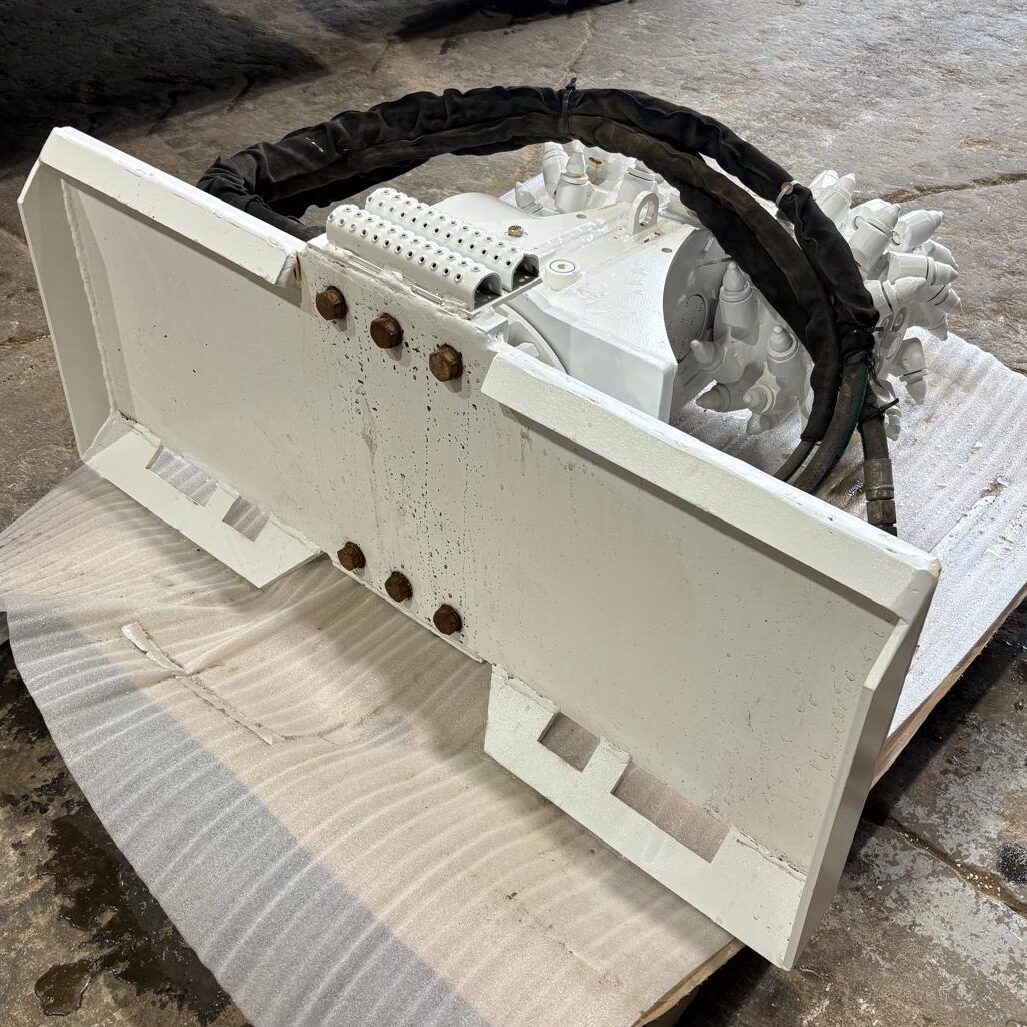

This Erkat ER100 Drum Cutter is set up for use on nearly any skid steer with its universal quick attach plate. It is also suitable for mounting on any excavator or skid steer with the required weight capacity and hydraulic flow (quick attach plate suited for your machine will be required).

Erkat Transverse Drum Cutters are an excellent choice for rock or concrete wall and surface profiling, trenching, soft rock and frozen soil excavation and demolition.

• Manufacturer: Erkat
• Model: ER100
• Year: 2018
• S/N: DGR913929
• Rec. Machine Weight Class: 3-7 ton
• Cutting Width: 24″
• Rotation Speed: 115rpm
• Optimal Oil Flow:
  • 10.8 GPM – 16.38 GPM
• Max Hyd. Pressure: 4500psi
• Torque Rating: 2214 Ft/lbs
• Max Material Hardness: 30 MPa
• Operating Weight: 770lbs (350kg)
• Features:
  • Can be fitted to an excavator, backhoe loader or skid-steer with the appropriate mounting bracket
  • Extremely robust spur gears for optimum energy transmission and maximum reliability
  • Robust housing design with HARDOX wear protection for higher uptime
  • High load resistant output shaft bearing system with lubrication-free slide ring seal system
  • Adaptable high torque radial piston motor for higher productivity and motor lifetime
  • Can be used up to 30 meters underwater with-out additional modification

Contact us today for more details!
