Manufacturer: Fortis Mining Engineering Manufacturing

Model #: 23705

Weight: 10,400 lbs

Max Pull Force: 80,000 lbs

Factor of Safety: 2:1

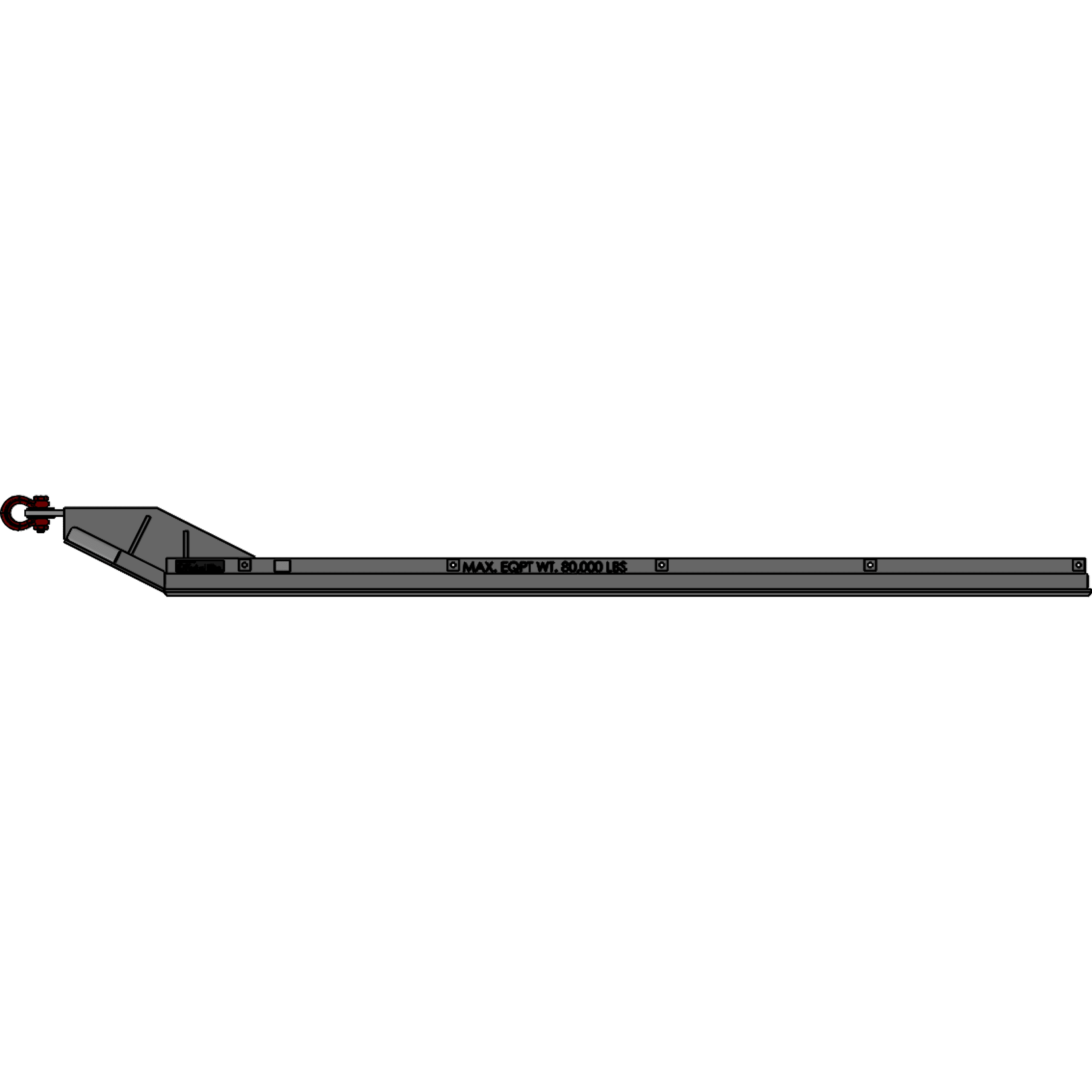

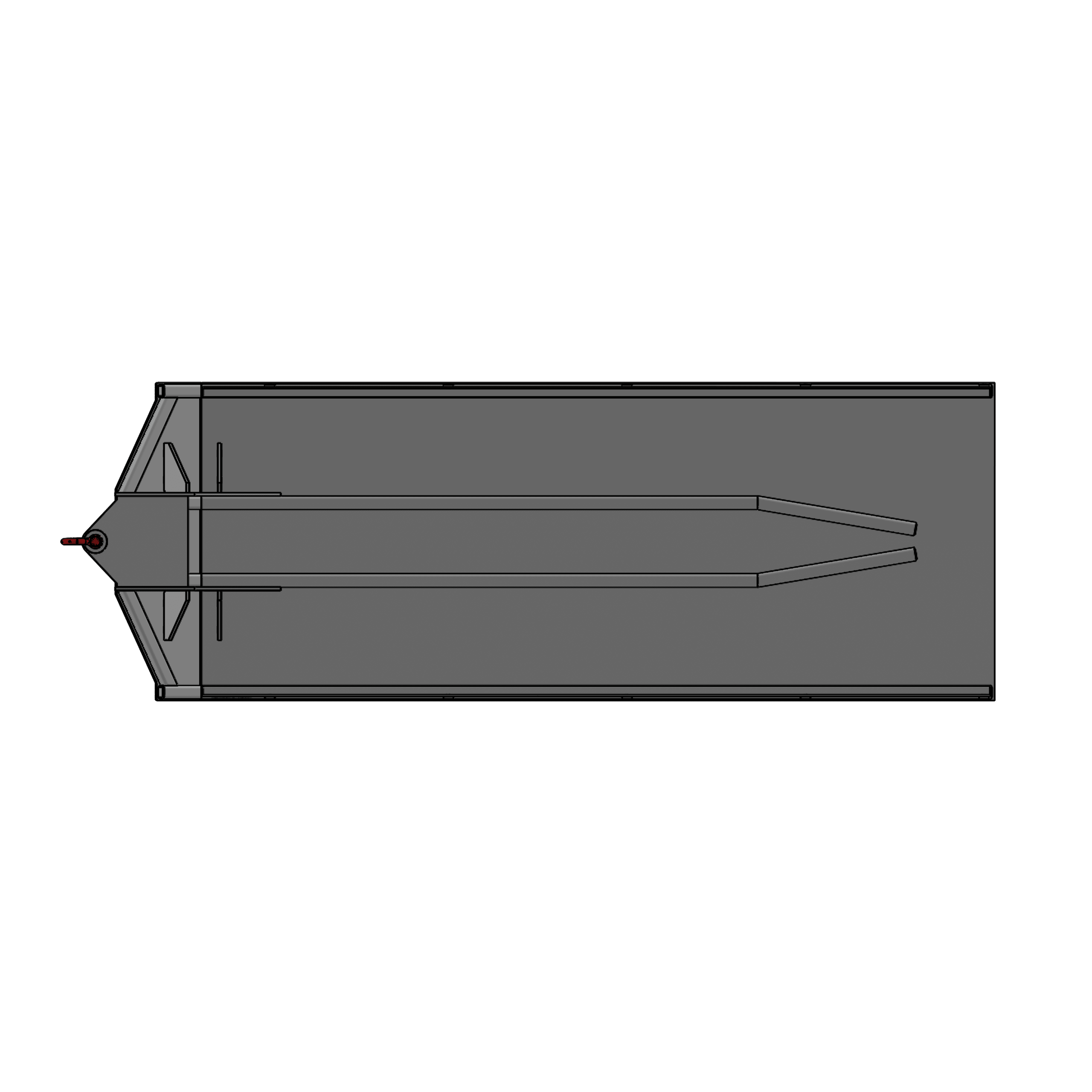

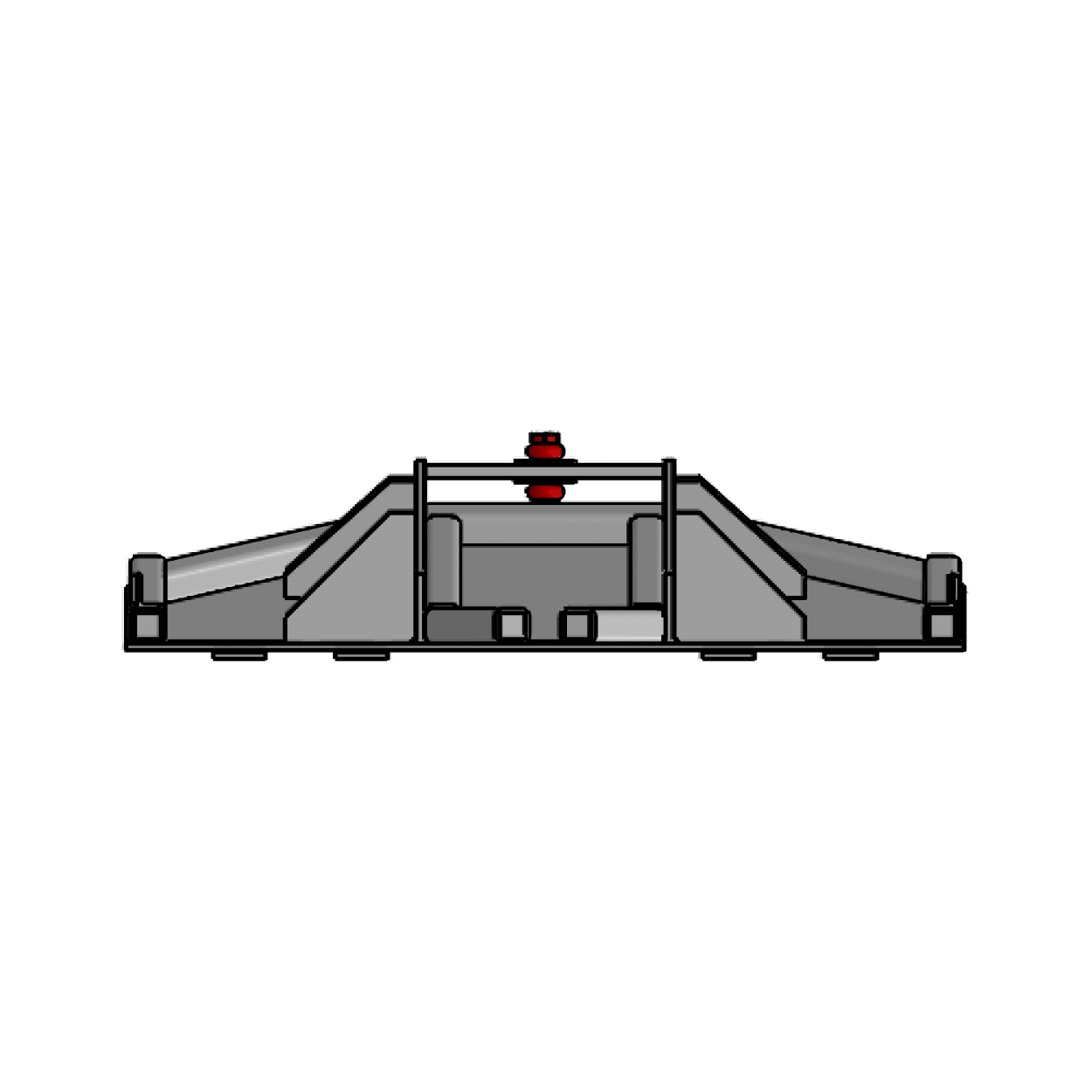

Overall Dimensions:

• Length: 265 7/8”
• Width: 96”
• Height: 25 3/4″

Track Equipment Dimensions:

• Max. Width of Single Track: 20”
• Min. Distance Between Tracks: 33”
• Max Track Length: 136″

Designed for:

• VOEST ALPINE AM 50 TRACK FOOTPRINT
  APPROX. WT. 58000 LBS.

• ANTRAQUIP AMQ-150 TRACK FOOTPRINT
  APPROX. WT. 77000 LBS.

• FAMUR AM-50Z-W TRACK FOOTPRINT
  APPROX. WT. 67000 LBS.

Features:

• Engineered design
• Meets applicable ASME standards
• Manufactured in Canada
